The production line is suitable for drilling angle steel in power tower,communication,steel structure bar.

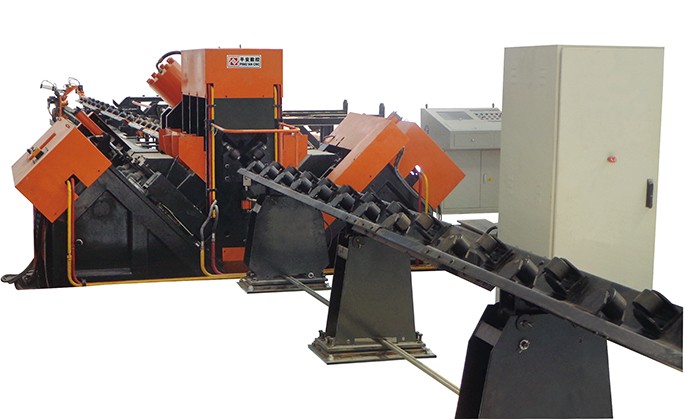

CNC Automatic Angle steel marking and drilling line
CAD2532、CAD2532A、CAD3635、CAD3635A
Apply scope:
The production line is suitable for power tower,communication,steel structure bar marking and drilling.
Technical parameters:
Модель | BL2532 | BL3635 | ADM2532 | ADM3635 | CDP3635 | |||
Processing size | Min. Angle size (mm) | L140´140´10 | ||||||
Max. Angle size (mm) | L250´250´32 | L360´360´35 | L250´250´ 32 | L360´360´35 | L360´360´35 | |||
Max. Angle length(mm) | ||||||||
Drilling spindle
| mber of drilling head in every side | 3 | ||||||
Spindle model | Morse #4 | BT40 | ||||||
Max. Drilling diameter(mm) | Æ26 | Æ40 | Æ26 | |||||
Spindel speed (rpm) | 180 – 560 | 180 – 6000 | ||||||
Adjustment range of distance between hole and back line of angle(Axis-Y in side A and B) | 20-220 | 20-340 | 50-220 | 50-330 | 50-330 | |||
Typing ability | Typing force(KN) | 1030 | ||||||
Group number for marking | 1 | |||||||
Qty. Of marking characters | 15 | |||||||
Character’s size(mm) | 14*10*19 | |||||||
Feeding speed(m/min.) | 30-80 | 30-80 | 40-80 | 40-80 | ||||
Feeding way | Trolley servo feeding | |||||||
Processing accuracy | Accord with GB2694-2010 | |||||||
Programming mode | Input the parameters by software or CAD drawing transfer | |||||||
Function of program | Real-time monitoring, Fault display, Fault alarm , etc. | |||||||
Dimension (L*W*H) (m) | 29*8.9*2.5 | 29*8.9*2.5 | 30*7.5*3 | 33*9*3 | 29*8.5*3 | |||
Product structure characteristics:

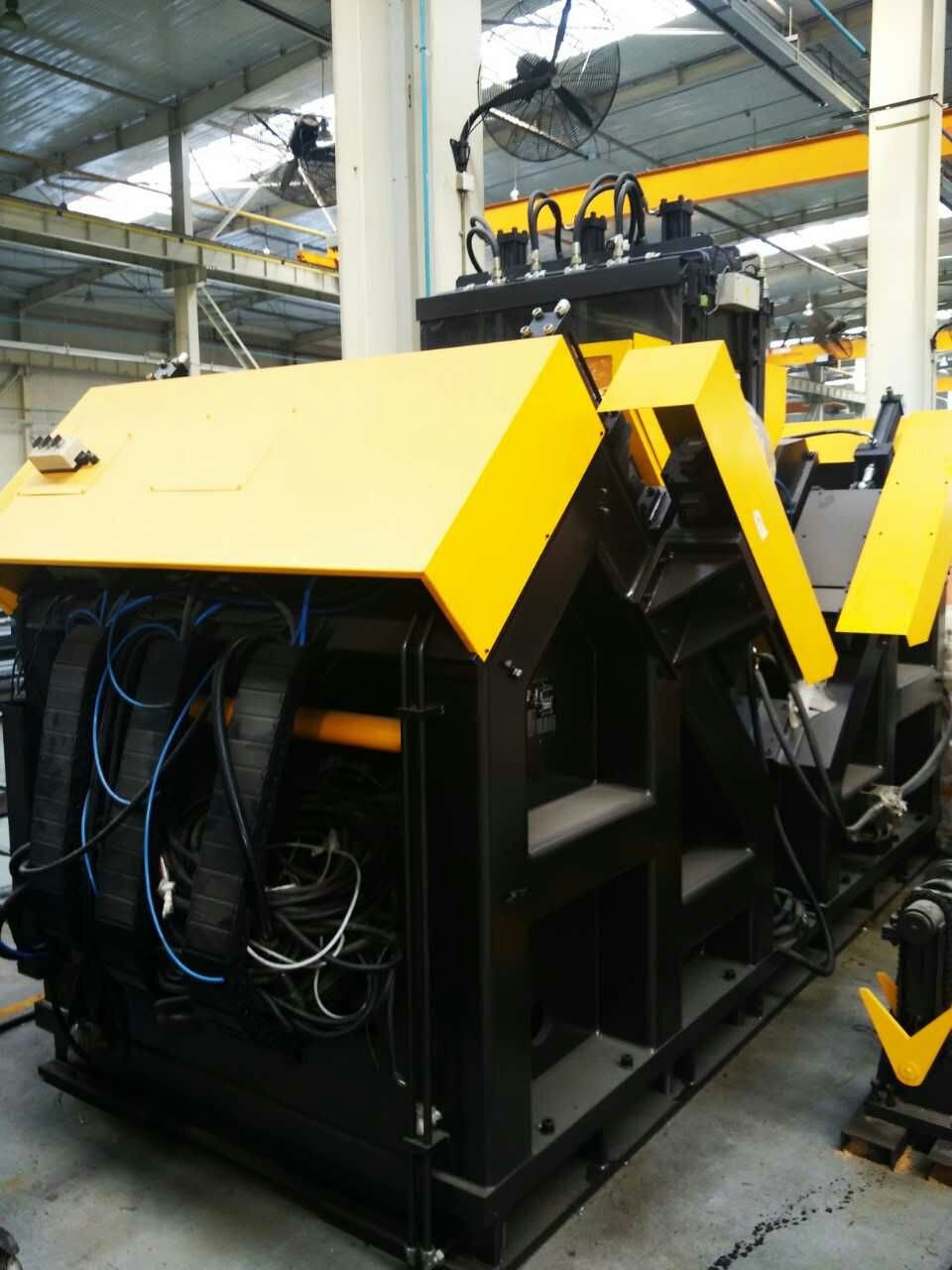

The machine is mainly composed of lateral feed table,overturn feeding,feed channel,CNC trlley marking,typing unit,drilling
unit,press unit,finished material channel,hydraulic system,pneumatic system,control system and so on.
1.The use of numerical control technology,servo motor feeding,high efficiency,stable operation.
2.Key hydraulic,pneumatic,electrical components all use of domestic and international famous brand.
3.Programming simple program data and can be used directly lofting software generated.
4.Poftware for the English interface,easy to operate,can display the working graphics.
5.Feeding,marking,drilling,and unloading are automatically carried out.
6.Simply input the workpiece size.hole distance.stadia.the number of jobs.work procedures or directly using the CAD/CAM
software to generate the lofting.
7.The machine have material support and vertical pressing device can adapt to bent angle.
8.With no cutting function,you can set the size of the material.
9.Fault self diagnosis function.
10.The user can choose to add the shear unit,and the shear unit is a double edge shear.
