The machine is mainly used for punching and stamping operation of metal plates in electric power,communication,automobile, steel structure and other industries.
PP/PPD Series of Steel Plate Punching (Drilling) and marking machine
PPD Series of Steel Plate Punching,Drilling and marking machine
PP Series of Steel Plate Punching and marking machine
Apply scope:
The machine is mainly used for punching and stamping operation of metal plates in electric power,communication,automobile, steel structure and other industries.
Product structure characteristics:
The automatic CNC machining of the machine has high work efficiency and accuracy of hole location,and is suitable for many kinds of processing.

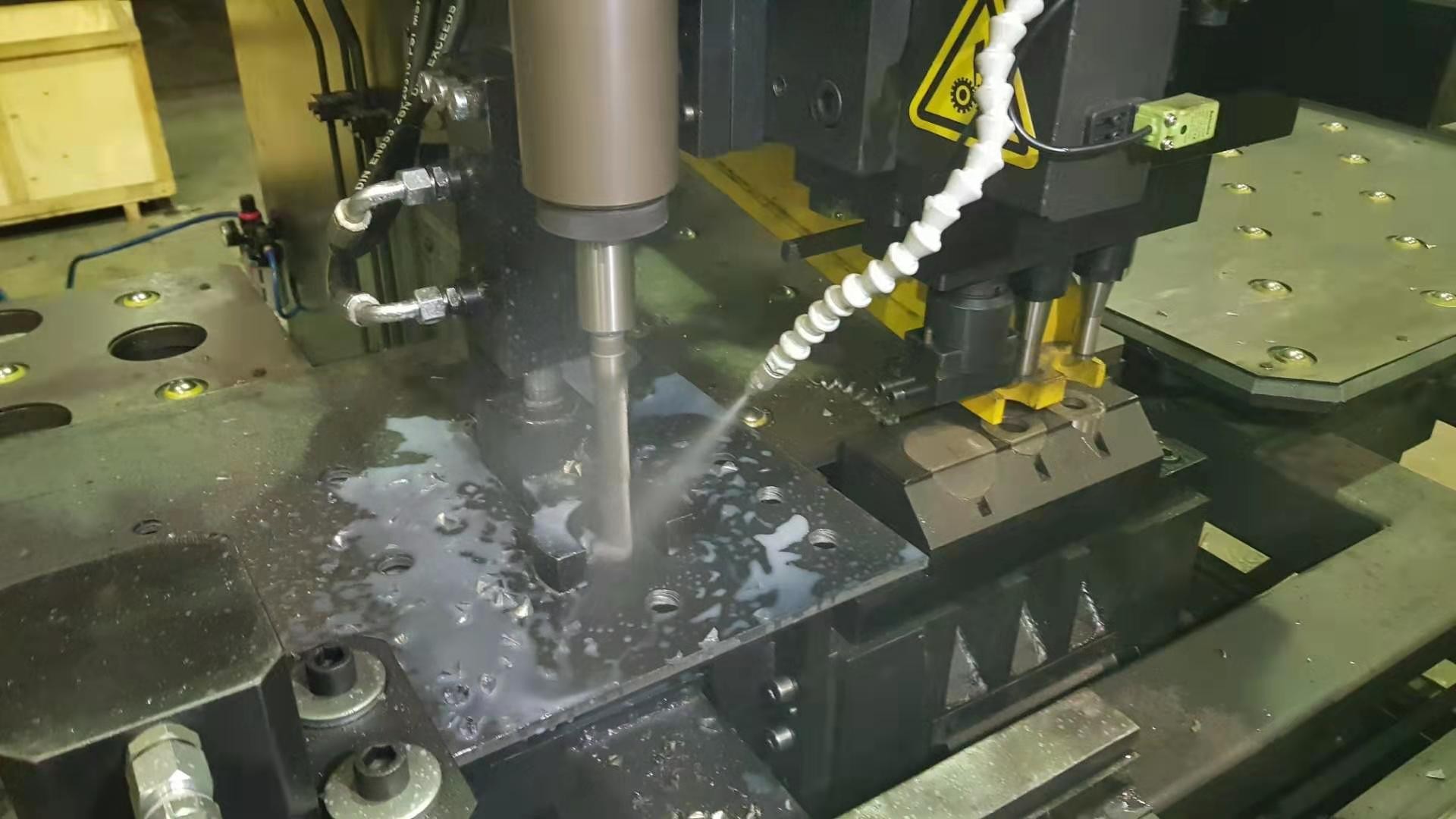

The machine combination of punching and drilling,punching small holes,drilling large holes,one machine to meet diversified production.
1.The body is C type steel plate welded structure,good steel,operating space.
2.The machine is equipped with three working stations (including one typing position),the stations switch is automatically carried out.
3.Clamping system which is suitable for different thickness of the workpiece,with the benchmark zero block,the workpiece is supported by ball worktable.
4.X axis and Y axis running by the servo motor + ball screw + precision linear guide driven by the dual axis CNC system to control the punching position.
5.The whole process automatically, the operator just need to input drawing.
Technical parameters:
Model | PP103 | PP123 | PPD103 | PPD123 | |
Processing size | Max. Processing size(mm) | 1500*800 | |||
Processing Thickness(mm) | 5-25 | 5-30 | 5-25 | 5-30 | |
Punching capacity | Punching force(KN) | 1000 | 1200 | 1000 | 1200 |
Max. Punching diameter(mm) | Φ26 | ||||
Punch die number | 3 | ||||
Processing accuracy | Min. Margin(mm) | 25 | |||
Punching accuracy(mm) | 0.5 | ||||
Drilling capacity | Number of drilling head | / | 1 | ||
Spindle taper | / | Morse #4 | |||
Spindle travel(mm) | / | 180 | |||
Max.drilling diameter(mm) | / | Φ50 | |||
Typing capacity | Typing force(KN) | 800 | 1000 | 800 | 1000 |
Character’s number for marking | 12 | ||||
Character’s size(mm) | 14*10*19 | ||||
Control way | PLC+ Upper computer | ||||
